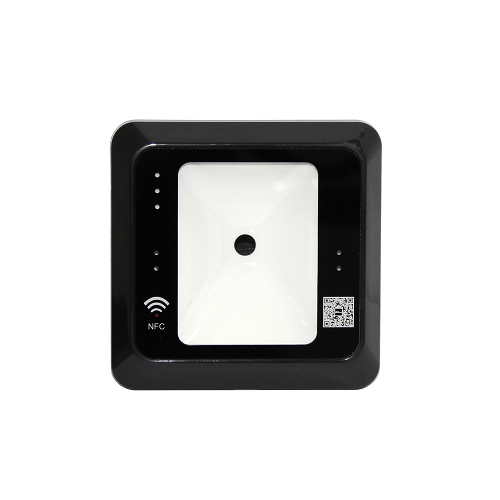

QR50BE

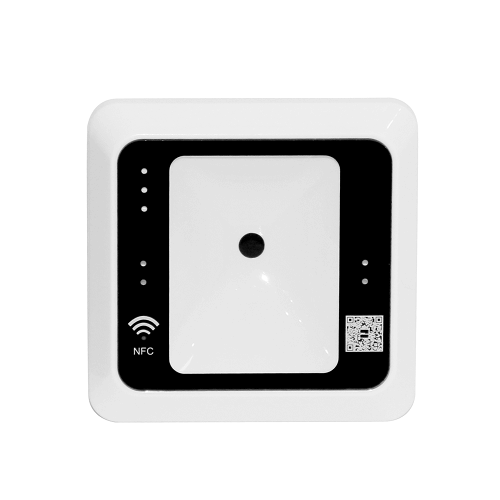

QR50BE - Image 2

QR50BE

The QR code Reader is a new generation of intelligent access control card readers. The product has a high scanning speed, high recognition rate, strong compatibility. It can be connected to any access controller that supports Wiegand input. The reader adapts to various application scenarios and identifies almost all kinds of RFID cards and QR codes, so the series could be used for community management, visitor management, hotel management, unmanned supermarkets and other fields.

Categories: ,

Description

  • ModelQR50BE / QR50WE / QR50BM / QR50WM
  • ColorQR50BE: Black
    QR50WE: White
    QR50BM: Black
    QR50WM: White
  • Using ProtocalStandard Wiegand Protocal and ZK RS485 Protocal
  • Readable CodesQR, Data Matrix, PDF417, EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code 39, Code 93, CodaBar
  • Codes Identification Angle360° Rotation, ±45° tilt
  • RFIDQR50BE / QR50WE: ID Card
    QR50BM / QR50WM: IC Card
  • Operating FrequencyQR50BE / QR50WE: 125kHz
    QR50BM / QR50WM: 13.56MHz
  • Power SupplyDC 12V (±5%); USB 5V
  • Reading DistanceCode ≥ 5cm; Card ≥ 4cm
  • CommunicationWiegand, RS485, USB
  • Operating Temperature-20°C to 60°C
  • Storage Temperature-20°C to 80°C
  • Operating Humidity20% to 80% (assuming the working environment temp. is 25°C)
  • Dimension86 * 86 * 50 (mm)
