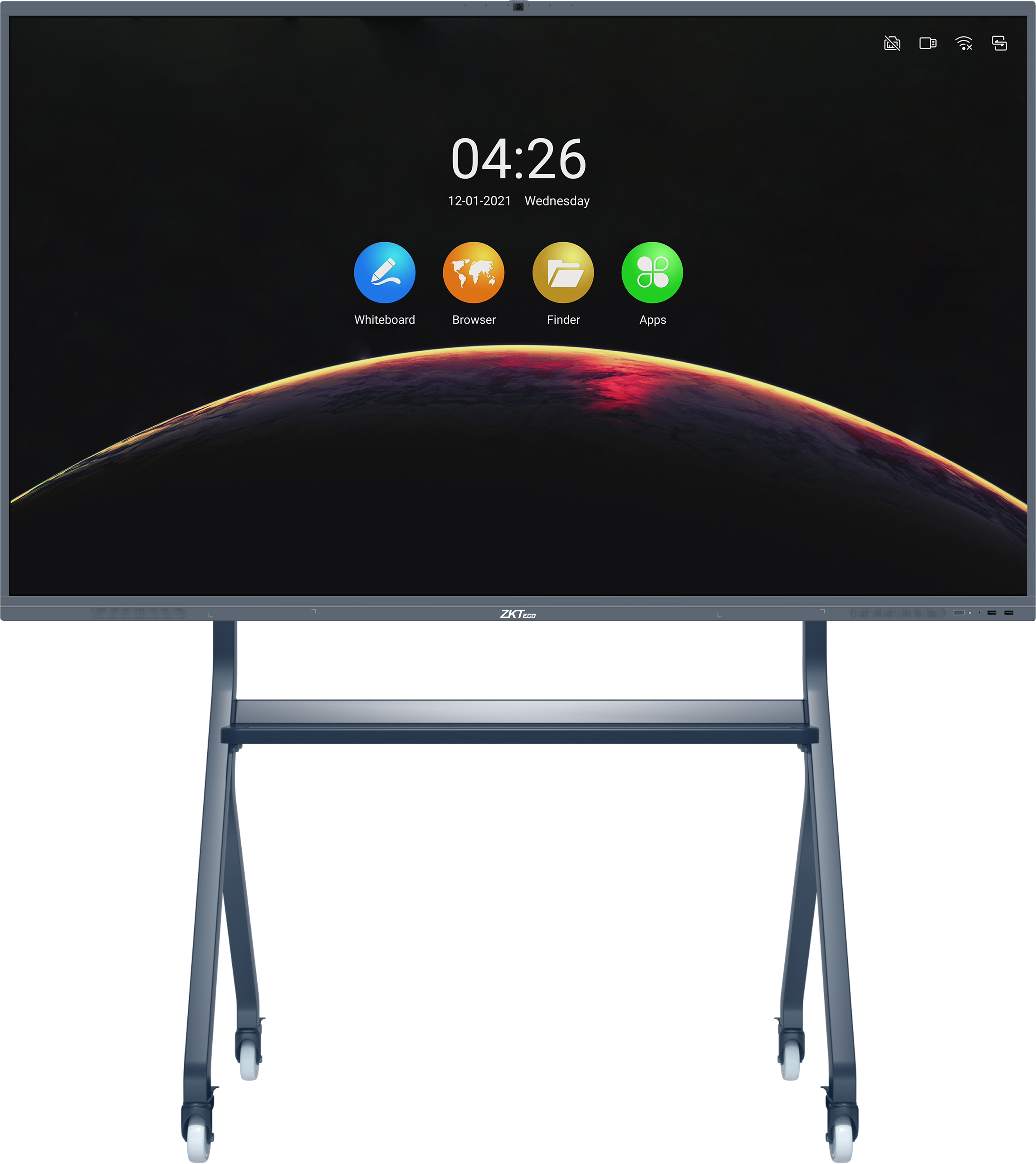

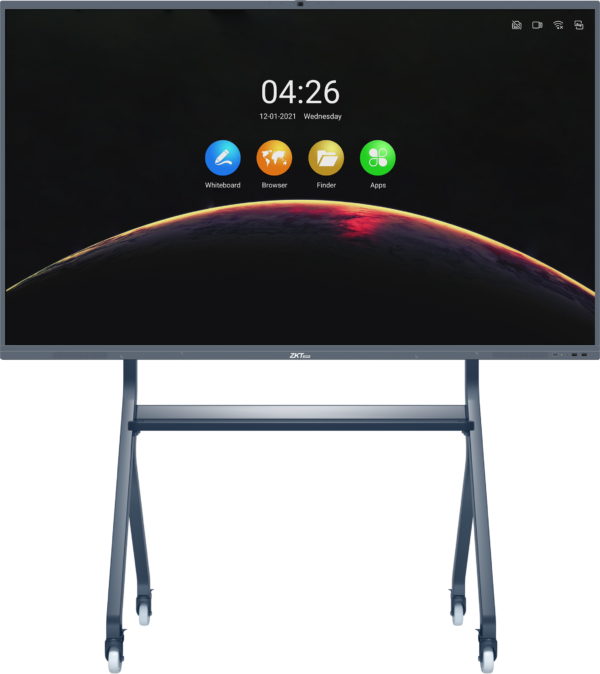

The ZK-IWBP series (ZK-IWB65BP/ZK-IWB75BP/ZK-IWB86BP) is an upgraded version of the interactive whiteboard  ZK-IWB, which adds a split-screen display, optical character recognition (OCR), and a type-C interface to enhance  meeting efficiency and productivity of a presentation.

Pasted

Description

  • SPECIFICATIONS
  • ModelZK-IWB65BP
    ZK-IWB75BP
    ZK-IWB86BP
  • LCD SCREEN
  • Size65-inch
    75-inch
    86-inch
  • Screen TypeBacklight：D-LED
  • Display ParametersFrequency ：60Hz
    Display Colors ：1.07B(10bit)
    Resolution： 3840 × 2160(pixels)
    Brightness： 350nits
    Contrast Ratio ：1200:1(Typ.)
    Response Time： ≤10ms
    Aspect Ratio：16:9
    Viewing Angle： 178°(H)/178°(V)
  • Camera & MICCamera：13 megapixels ； Auto frame ； Field of View: H: 92°; V: 60°; D: 100°
    Microphone ：6 microphones array； Echo cancellation, Noise Filtering, Automatic gain
  • SpeakerPower：2*16W (180Hz~20KHz)
  • Power ParametersPower Consumption ：200W； 300W ； 550W
    Working Voltage ：AC 100V to 240V, 50/60Hz
    Power Type ：AC Power
    Standby Consumption ：≤0.5W
  • Touch ParametersTouch Technology： Infrared touch technology
    Touch Points： 20 Multi-touch points
    Input ：Bare finger; gloved finger; stylus
    Accuracy ：±1mm
    Minimum Size ：2mm
    Resolution ：32767 x 32767
    Response Time ：≤10ms
  • ConnectivityHDMI：HDMI IN: 3 HDMI OUT: 1
    USB：USB 2.0 * 1；USB 3.0 * 4；USB Type-C * 1
    VGA： VGA IN * 1
    Ethernet：RJ45 IN * 1；RJ45 OUT * 1
    RS232 ：RS232 * 1
    Touch：Touch * 2
    Audio：AUDIO IN * 1；AUDIO OUT * 1 SPDIF * 1
  • Android OSAndroid System：Android 11.0；4G RAM, 32G ROM
    CPU： Quad core A55
    GPU ：Mali G52MP2
  • Windows (Optional)Windows System ：Windows 10, 8G RAM, 128G ROM
    CPU： Intel(R)Core i5-8400 CPU @ 2.80GHz 2.81 GHz
    GPU： Intel(R) UHD Graphics 630
  • Physical ParametersProduct Dimensions： (L*W*H)1488 * 906 * 87 (mm) ；1709 * 1029 * 88 (mm)； 1957 * 1169 * 88(mm)
    Package Dimensions (L*W*H)：1628 * 208 * 1014(mm)； 1863 * 225 * 1148(mm) 2110 * 225 * 1291(mm)
    Net Weight (kg) ：36.85Kg ；47.65Kg ；61.65Kg
    Weight with Packaging (kg)：45.40Kg ；62.35Kg ；79.20Kg
  • General EnvironmentOperating Temperature ：0°C to 40°C ；0°C to 40°C； 0°C to 40°C
    Storage Temperature： -20°C to 60°C； -20°C to 60°C； -20°C to 60°C
    Storage and Operating Humidity：10% to 90% RH； 10% to 90% RH； 10% to 90% RH
  • Standard PackageInteractive whiteboard * 1
    Power cable * 1
    Stylus Pen * 2
    Wall bracket * 1
    User manual * 1
  • Optional AccessoriesOPS
    Movable stand







Please Login To Download Attachment
